Weld Inspection Equipment helps inspectors examine welded joints, identify discontinuities, and collect measurement data without unnecessarily damaging the component.

Modern inspection programs can combine visual examination, ultrasonic testing, radiographic inspection, magnetic particle testing, dye penetrant testing, and dimensional measurement. Each method detects different types of imperfections, so the appropriate combination depends on the material, weld configuration, inspection requirement, and applicable specification.

What Is Weld Inspection Equipment?

Weld Inspection Equipment refers to tools, instruments, and systems used to examine welded joints and evaluate their quality.

The equipment can identify or help evaluate characteristics such as:

• Surface cracks
• Porosity
• Slag inclusions
• Lack of fusion
• Lack of penetration
• Undercut
• Weld profile
• Dimensional deviations
• Internal discontinuities

Some techniques provide direct visual information, while others use sound waves, electromagnetic fields, penetrating liquids, or radiation to reveal conditions that cannot be seen from the surface.

From Welds to Quality Data

The inspection process generally moves from preparation and examination to measurement, analysis, and documentation.

1. Weld Preparation

Before inspection begins, the weld area is prepared for examination.

Depending on the inspection method, this can involve removing dirt, grease, loose material, paint, or other contaminants that could interfere with the inspection.

2. Visual Examination

The first stage is often a visual inspection.

Inspectors examine the weld surface, weld profile, surrounding material, and visible discontinuities using direct observation and inspection aids.

Common tools include:

• Inspection mirrors
• Weld gauges
• Magnifiers
• Inspection lights
• Borescopes
• Cameras

3. Dimensional Measurement

Weld dimensions can be checked against specified requirements.

Measurements may include:

• Weld throat
• Weld leg length
• Reinforcement height
• Undercut depth
• Joint alignment
• Bead width

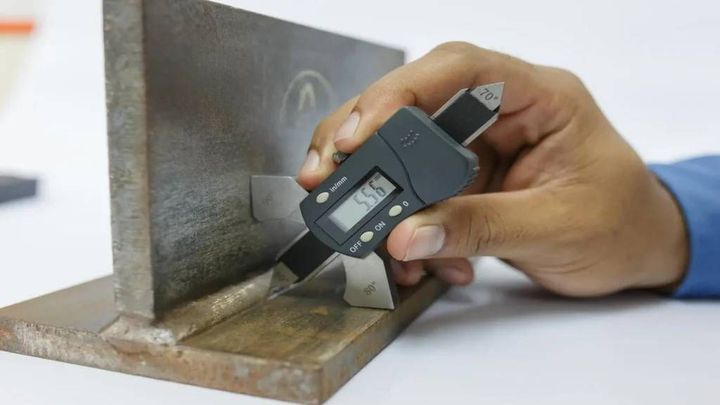

Weld gauges and digital measuring instruments can support these evaluations.

4. Surface Examination

When visual inspection alone is insufficient, surface inspection techniques can identify discontinuities that reach or approach the surface.

Magnetic particle and dye penetrant inspection are commonly used for this purpose.

5. Internal Examination

Some weld defects are located below the surface and require volumetric inspection.

Ultrasonic testing and radiographic inspection can provide information about internal weld conditions.

6. Data Collection

Modern inspection equipment can record measurements, images, ultrasonic signals, radiographic images, and other examination results.

Digital records make it easier to review inspection findings and compare results with acceptance criteria.

7. Reporting

Inspection results are compiled into reports that can document the weld location, inspection method, equipment, measurements, indications, and final evaluation.

Major Types of Weld Inspection Equipment

Different technologies are designed to identify different weld characteristics.

Visual Weld Inspection Equipment

Visual inspection is one of the most widely used examination methods.

It can be performed directly or with optical tools and cameras.

Typical equipment includes:

• Welding inspection gauges
• Illuminated magnifiers
• Inspection mirrors
• Borescopes
• Digital cameras
• Video inspection systems
• Portable lighting

Visual inspection can identify visible cracking, excessive reinforcement, undercut, overlap, poor bead appearance, and dimensional irregularities.

However, visual examination cannot reveal every internal discontinuity.

Weld Inspection Gauges

Weld gauges are designed to measure specific weld dimensions.

Depending on the gauge type, an inspector may measure:

• Fillet weld size
• Weld reinforcement
• Undercut
• Bevel angle
• Misalignment
• Root gap
• Weld length

Digital versions can provide numerical readings that can be recorded directly in inspection documentation.

Ultrasonic Weld Inspection Equipment

Ultrasonic testing uses high-frequency sound waves to examine material and weld structures.

A transducer sends sound waves into the component. Changes in the returning signal can indicate variations within the material.

Ultrasonic Weld Inspection is commonly used for detecting internal discontinuities in suitable materials.

Modern systems may include:

• Portable ultrasonic flaw detectors
• Digital ultrasonic testers
• Angle-beam probes
• Phased array systems
• Encoded scanners
• Data acquisition software

Phased Array Ultrasonic Testing

Phased array systems use multiple ultrasonic elements that can be electronically controlled to direct and focus sound waves.

This allows inspectors to examine a weld from multiple angles and produce detailed inspection images.

Phased array technology can be useful for complex weld geometries and applications requiring extensive examination coverage.

Radiographic Weld Inspection Equipment

Radiographic inspection uses penetrating radiation to create an image representing differences in material density and structure.

Traditional radiography uses film, while digital systems can use electronic detectors.

Radiographic systems can help reveal internal conditions such as:

• Porosity
• Slag inclusions
• Incomplete penetration
• Some forms of incomplete fusion
• Internal geometric variations

Because radiation is involved, radiographic inspection requires controlled operating procedures, appropriate shielding, trained personnel, and regulatory compliance.

Magnetic Particle Inspection Equipment

Magnetic particle inspection is generally used on ferromagnetic materials.

The component is magnetized, and magnetic particles are applied to the inspection area. Certain discontinuities can disturb the magnetic field and produce visible particle accumulations.

This method is particularly useful for identifying surface and near-surface discontinuities.

Dye Penetrant Inspection Equipment

Dye penetrant inspection uses a liquid penetrant to reveal surface-breaking discontinuities.

The basic process generally includes:

1. Surface cleaning
2. Penetrant application
3. Dwell period
4. Excess penetrant removal
5. Developer application where applicable
6. Inspection
7. Cleaning and documentation

This method can be used on many non-porous materials when the surface condition is suitable.

Automated Weld Inspection Systems

Automated and semi-automated systems can improve inspection consistency for repetitive applications.

They may combine:

• Robotic scanners
• Encoded ultrasonic probes
• Machine vision
• Automated weld tracking
• Digital image processing
• Data acquisition software

Automated inspection can create repeatable inspection paths and digitally record examination results.

Weld Inspection Equipment Comparison

How to Select Weld Inspection Equipment

Choosing inspection equipment requires consideration of the weld, material, inspection objective, and operating environment.

Material Type

Magnetic particle inspection is designed for ferromagnetic materials, while dye penetrant inspection can be applied to various non-porous materials.

Ultrasonic and radiographic methods have their own material and geometry considerations.

Weld Geometry

Pipe welds, butt joints, fillet welds, complex structures, and thick components may require different inspection approaches.

Defect Type

The expected discontinuity determines which technique is appropriate.

Surface-breaking cracks, for example, may require a different method from internal volumetric discontinuities.

Component Thickness

Thickness can influence the appropriate ultrasonic probe, radiographic technique, or inspection procedure.

Accessibility

Inspectors must be able to access the required inspection area.

Limited access may influence whether a portable scanner, remote camera, ultrasonic system, or another approach is appropriate.

Data Requirements

Applications requiring digital traceability may benefit from equipment capable of storing measurements, images, scan data, and inspection reports.

Calibration and Equipment Verification

Accurate inspection depends on properly maintained and verified equipment.

Depending on the technology, inspection programs may include:

• Equipment calibration
• Reference blocks
• Sensitivity verification
• Probe checks
• Gauge verification
• Radiation equipment checks
• Software verification

The appropriate verification procedure depends on the inspection method and applicable requirements.

Digital Weld Inspection

Digital technologies have changed how inspection results are captured and analyzed.

Modern systems can generate digital records containing:

• Inspection images
• Measurement values
• Scan data
• Equipment information
• Inspection locations
• Operator information
• Examination results

Digital records can simplify documentation and make historical inspection data easier to review.

Applications of Weld Inspection Equipment

Pipeline Inspection

Weld inspection equipment is used to examine pipeline joints for surface and internal discontinuities.

Pressure Equipment

Pressure vessels, tanks, and related components may require detailed weld examination because weld integrity is important to their operation.

Structural Fabrication

Steel structures, bridges, platforms, and fabricated assemblies can use visual and non-destructive examination methods.

Automotive Manufacturing

Welded vehicle structures and components may undergo automated or manual inspection depending on production requirements.

Shipbuilding

Weld inspection is important for hull structures, piping, tanks, and other fabricated marine components.

Aerospace Manufacturing

Aircraft structures and components can require highly controlled inspection procedures for critical welded or joined areas.

Maintenance Best Practices

Proper equipment maintenance helps maintain reliable inspection results.

Keep Sensors and Probes Clean

Contamination can affect probe performance and inspection results.

Inspect Cables and Connectors

Damaged cables, connectors, or housings can interfere with measurement systems and electronic equipment.

Verify Gauges Regularly

Weld gauges should be checked against appropriate reference standards.

Maintain Reference Standards

Reference blocks and test pieces should be stored and maintained properly.

Follow Equipment Procedures

Each inspection technology should be operated according to its applicable technical and safety procedures.

Frequently Asked Questions

What is Weld Inspection Equipment?

Weld Inspection Equipment includes tools and systems used to examine welded joints for surface imperfections, dimensional deviations, and internal discontinuities.

What equipment is used for weld inspection?

Common equipment includes weld gauges, visual inspection tools, ultrasonic flaw detectors, phased array systems, radiographic equipment, magnetic particle systems, and dye penetrant inspection materials.

What is the best method for inspecting welds?

The appropriate method depends on the material, weld geometry, expected discontinuities, component thickness, accessibility, and applicable inspection requirements. Multiple methods may be combined.

Can weld inspection equipment detect internal defects?

Yes. Techniques such as ultrasonic testing, phased array ultrasonic testing, and radiographic inspection can detect or characterize certain internal discontinuities.

How often should weld inspection equipment be calibrated?

Calibration and verification intervals depend on the equipment type, applicable standards, manufacturer requirements, and inspection program. Equipment should be verified according to the procedures governing the specific application.

Conclusion

Weld Inspection Equipment converts weld examination from simple visual observation into measurable quality data. Different technologies address different inspection requirements, ranging from weld gauges and visual tools to ultrasonic, radiographic, magnetic particle, and dye penetrant systems.

The right inspection approach depends on the material, weld geometry, component thickness, expected discontinuities, accessibility, and required documentation. No single inspection technology is suitable for every weld, which is why inspection programs often combine complementary methods.

Modern digital and automated systems are also expanding the capabilities of weld inspection. Encoded scanners, phased array ultrasonic systems, machine vision, digital radiography, and inspection software can capture detailed information while supporting repeatable examination procedures.

Proper calibration, equipment verification, operator training, documentation, and maintenance remain important regardless of the technology selected. When these elements are combined with an appropriate inspection method, weld examination can provide useful data for evaluating fabricated components and monitoring manufacturing quality.
